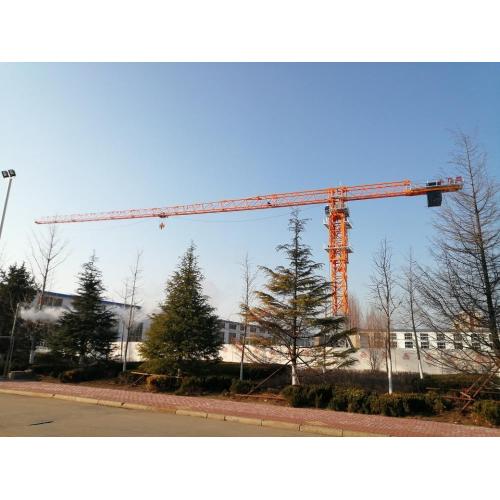

Hot selling&quality 10t flat top tower crane
$193000-193750 /Set/Sets
Payment Type: | T/T |
Incoterm: | FOB,EXW,CIF |
Min. Order: | 5 Set/Sets |
Transportation: | Ocean,Land,Others |
Port: | QINGDAO,TIANJIN,SHANGHAI |
$193000-193750 /Set/Sets
Payment Type: | T/T |
Incoterm: | FOB,EXW,CIF |
Min. Order: | 5 Set/Sets |
Transportation: | Ocean,Land,Others |
Port: | QINGDAO,TIANJIN,SHANGHAI |
Model No.: PT6520-10T
Brand: FYG
Characteristic: Tower Crane
Applicable Industry: Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): United Kingdom, France, Germany, Indonesia, Mexico, Russia, Thailand
Showroom Location (in Which Countries Are There Sample Rooms Overseas): France, Germany, Indonesia, Mexico, Russia
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Bearing, Gearbox, Gear
Status: New
Rated Load: 10 Ton
Maximum Lifting Height: Other
Place Of Origin: China
Warranty Period: 1 Year
Unique Selling Point: High Load Moment
Flat top crane offers a wide Various of crane models ,which is a high quality Flat Top Tower Crane,these are high performance cranes that ensure optimal productivity on the job site ,easy to assemble ,especially on projects that have several cranes working at the same time.

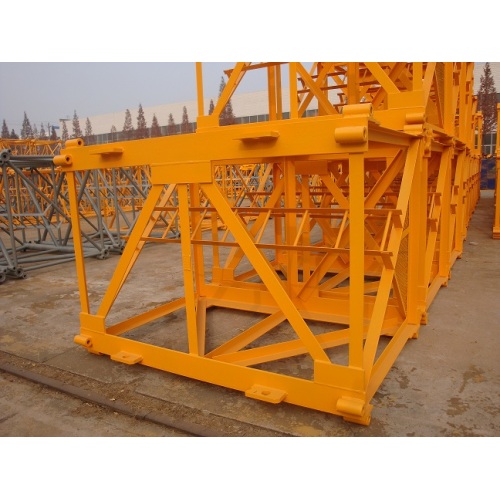

Our 10t Tower Crane structure is strictly following with standard ,the slewing table adpot multilayer multipass welding to prevent the cracking . The hoisting jib adopts a quick assembly structure, which is easy to install and disassemble. The boom section can be adjusted in the air at any time. All booms are pre-assembled and tested before leaving the factory to ensure the straightness and horizontal inclination upwards degree.
Name | unit | parameter | ||||||
Rated lifting moment | kN.m | 2000 | ||||||
max.lifting capacity | t | 10 | ||||||
work range | m |
3~65 | ||||||
rated lifting capacity at max.working range | t |
2 | ||||||
Lifting height | m | Magnification | Detached | Attached | ||||
2 |
61 | 200 | ||||||
4 |
61 | 100 | ||||||
Lifting performance | Magnification |
| 2 | 4 | ||||
Lifting speed | m/min |
42.5 |
85 |
21 |
42.5 | |||
Lifting capacity | t |
5 | 2.5 | 10 | 5 | |||
Swing speed | r/min | 0-0.7 | ||||||
Luffing speed | m/min | 0-60 | ||||||
Operating temperature | ℃ | -20~+40 | ||||||
Total power | kW |
61.5(No including jacking motor) |
Fangyuan Group have much experience on producing construction machinery, in the past few years, our company product have widely used in the worldwide, for the tower crane, we have two types, one is Hammer Head Tower Crane, the other is flat top tower crane, we committed in provide best service with customers.except that, the Concrete Mixing Plant and Concrete Pump are also popular in the construction yeild, and the quality of our production is also trustable in the construction machinery.
— — · FAQ · — —
1. Why choose us?
We are professional manufacture both for machine and spare parts since 1970. Additional to that, we also can equipped the spare parts according to customer’s requirement.
2. Do you accept special orders?
A: Special order is also available because we are the factory with design and manufacturing department.
3. What is the real delivery time of your factory?
A: 10 to 20 days for general series products, but special orders will need 30 or more days based on different situations and products.
4.How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of tower crane for most of our customers at home or abroad.
With our experienced quality control team, we are trying to offer most of our customers the product with best quality. Meanwhile, each of our products will passed the quality test before delivery.
5. What is the max. capacity of the tower crane?
PT series : 6T 10T 16T 18T
TC series: 5T 6T 8T 10T 12T 16T
6. Where can we buy the machine's parts?
A: Generally, when delivery, we send customers some wearable spare parts for free for urgent requirement.We also have our spare parts warehouse,customer can confirm with us which parts are needed.
